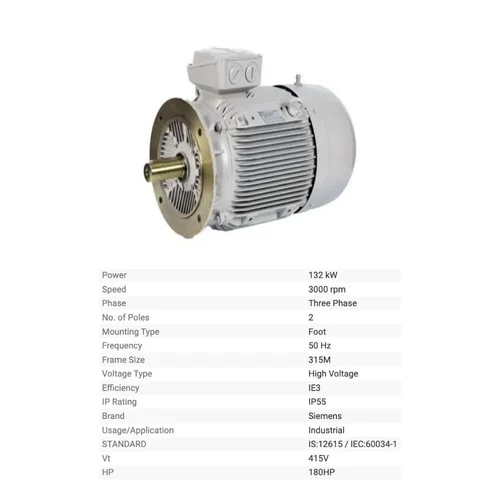

180HP IE3 1LE7503-3AA23-5AA4 Siemens Three-Phase Electric Motor
180HP IE3 Siemens Three-Phase Electric Motor - 1LE7503-3AA23-5AA4
Available Range:
Siemens IE3 Motor 2 POLE 3000RPM: 0.25 kw TO 200* kw , Siemens IE3 motor 4 POLE 1500RPM : 0.18 kw TO 250 kw, Siemens IE3 motor 6 POLE 1000RPM : 0.18 kw To 200 kw, Siemens IE3 INDUCTION motor 8 POLE 750RPM : 0.12 kw To 110 kw
Power 132 kW Speed 3000 rpm Phase Three Phase No. of Poles 2 Mounting Type Foot Frequency 50 Hz Frame Size 315M Voltage Type High Voltage Efficiency IE3 IP Rating IP55 Brand Siemens Usage/Application Industrial STANDARD IS:12615 / IEC:60034-1 Vt 415V HP 180HP Siemens IE3 motor, 132 kW (180 HP), 3000 RPM, 2 Pole, 315M […]
Price: ₹9,36,245/Piece
| Power | 132 kW |
| Speed | 3000 rpm |
| Phase | Three Phase |
| No. of Poles | 2 |
| Mounting Type | Foot |
| Frequency | 50 Hz |
| Frame Size | 315M |
| Voltage Type | High Voltage |
| Efficiency | IE3 |
| IP Rating | IP55 |
| Brand | Siemens |
| Usage/Application | Industrial |
| STANDARD | IS:12615 / IEC:60034-1 |
| Vt | 415V |
| HP | 180HP |
Siemens IE3 motor, 132 kW (180 HP), 3000 RPM, 2 Pole, 315M frame, model 1LE7503-3AA23-5AA4, M&L (mixed foot and flange) mounting, TEFC squirrel cage induction type, IP55 enclosure, 415V, 3-phase, 50Hz power supply, Class F insulation, continuous duty.
Designed for operation in ambient temperatures up to 50°C and installation altitudes up to 1000 meters above sea level.
Compliant with IEC 60034-1 and IS 12615 standards, offering energy-efficient performance for industrial applications.
