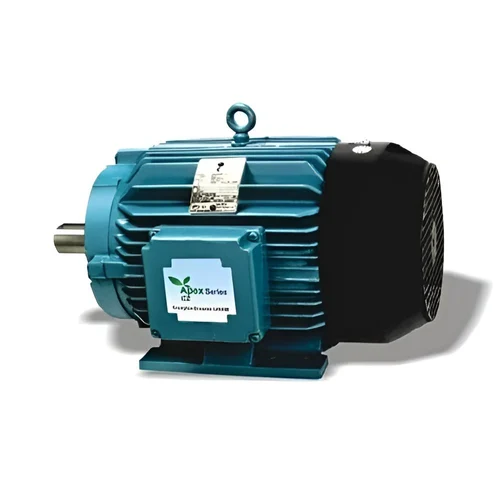

200 KW Crompton Greaves Three-Phase Electric Motor
200 KW Crompton Greaves Three-Phase Electric Motor
Available Range:
CG IE3 TEFC Squirrel Cage INDUCTION Motor 2 POLE 3000RPM: 0.37 kw TO 315 kw , CG IE3 INDUCTION motor 4 POLE 1500RPM : 0.55 kw TO 315 kw, CG IE3 INDUCTION motor 6 POLE 1000RPM : 0.37 kw To 315 kw, CG IE3 INDUCTION motor 8 POLE 750RPM : 0.37 kw To 315 kw
Phase Three Phase Power 200 Number Of Poles 2 Frame Size ND315L Speed 3000rpm Voltage 415v Frequency 50hz Efficiency IE3 IP Rating IP55 Brand Crompton Graves (CG) Body Material Cast Iron Usage/Application Industrial HP 270 Crompton Greaves CG IE3 motor, 200 kW (270 HP), 3000 RPM, 2 Pole, ND315L frame, foot mounting, TEFC squirrel cage […]
Price: ₹9,33,094/Piece
| Phase | Three Phase |
| Power | 200 |
| Number Of Poles | 2 |
| Frame Size | ND315L |
| Speed | 3000rpm |
| Voltage | 415v |
| Frequency | 50hz |
| Efficiency | IE3 |
| IP Rating | IP55 |
| Brand | Crompton Graves (CG) |
| Body Material | Cast Iron |
| Usage/Application | Industrial |
| HP | 270 |
Crompton Greaves CG IE3 motor, 200 kW (270 HP), 3000 RPM, 2 Pole, ND315L frame, foot mounting, TEFC squirrel cage induction type, IP55 enclosure, 415V, 3-phase, 50Hz power supply, Class F insulation, continuous duty.
Designed for operation in ambient temperatures up to 50°C and installation altitudes up to 1000 meters above sea level.
